Film capacitor final quality is determined by full‑link process management and control. Most customers only see encapsulated finished goods without understanding complicated internal procedures inside a film capacitor factory. Qualified film capacitors go through incoming‑material inspection of metallized film raw materials, winding, hot pressing, metal spraying, soldering, encapsulation, aging and multi‑dimensional testing before delivery. Fluctuation in any single procedure will directly affect long‑term product reliability. weidy owns 24‑year R&D and manufacturing accumulation, proprietary 6T core craftsmanship and complete automatic production lines with visual and traceable manufacturing process. This article fully disassembles the whole production workflow.

The first step is incoming‑material inspection. Core raw materials contain custom incoming‑material for film capacitor including metallized film, lead‑out wires and encapsulation resin. Factories implement sampling inspection for every batch of film, testing film thickness, uniformity of metallic coating and withstand‑voltage performance. Base materials with pinholes or uneven coating get eliminated to prevent component failure risks in subsequent phases. Raw‑material audit serves as an important segment within five‑step supplier evaluation. Only inspected‑qualified materials are permitted to enter production workshops.

The second step is element winding. Metallized film is accurately wound into capacitor cores according to specification parameters. Manufacturers must control winding tension and alignment precision to avoid film offset and dislocation. weidy adopts anti‑drift welding technology to reduce parameter deviation generated by winding eccentricity. After winding, cores are sent for hot‑pressing procedure. Loose winding cores are compressed into compact and smooth status under 105‑120℃ hot press treatment to release internal stress and improve inner structural stability.

Third step covers metal‑spraying and lead‑wire soldering. Alloy metallic layers are sprayed onto two end‑faces of winding cores to form electrodes, followed by soldering of lead‑out wires, which determines contact‑resistance performance of components. Then comes encapsulation and curing: epoxy resin or plastic shells isolate inner cores from moisture and dust. After encapsulation, baking‑aging treatment simulates long‑time working environment and screens early‑failure defective products in advance.

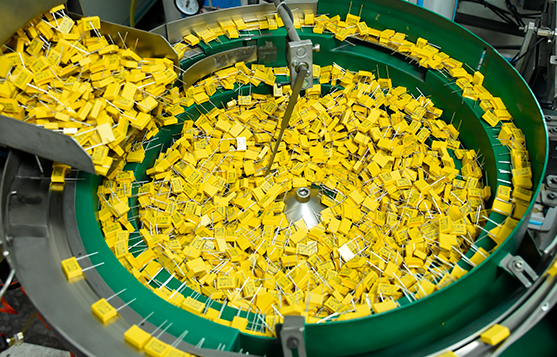

Fourth step is multi‑dimensional finished‑product inspection, the most critical checkpoint before shipment. weidy film capacitor follows 24 sets of quality‑control procedures, including capacitance test, dissipation‑factor test, insulation‑resistance measurement and full‑item withstand‑voltage test. Meanwhile CCD machine‑vision inspection identifies appearance defects such as shell damage, printing error and lead deformation. Units failing parameter tests get eliminated directly without entering packaging stations. Fully‑qualified products will be marked, taped or bulk‑packed and stored in warehouse automatically.

As shown in the complete workflow, film capacitor manufacturing is far from simple assembly. Thirty production‑process links implement multi‑round screening covering raw‑materials to finished goods. Strict execution of full procedures at original‑source factories lowers rework and return probability and helps customers save 20% invisible production cost. During procurement, select manufacturers with complete in‑house production capacity to avoid quality‑uncontrollable risks brought by external processing of semi‑finished products.
